Code share tool#

The Code share tool is an interactive workspace allowing users to copy the style of a MapX view and use it in diverse contexts. Only vector type views provide the ability to access this tool. They are identifiable in the data catalog by their green color (circle to the left of their title). Once a vector view is open, the Code sharing tool table can be accessed via the dedicated button in the options bar.

../../_images/code-share-view-button.png

Code share icon#

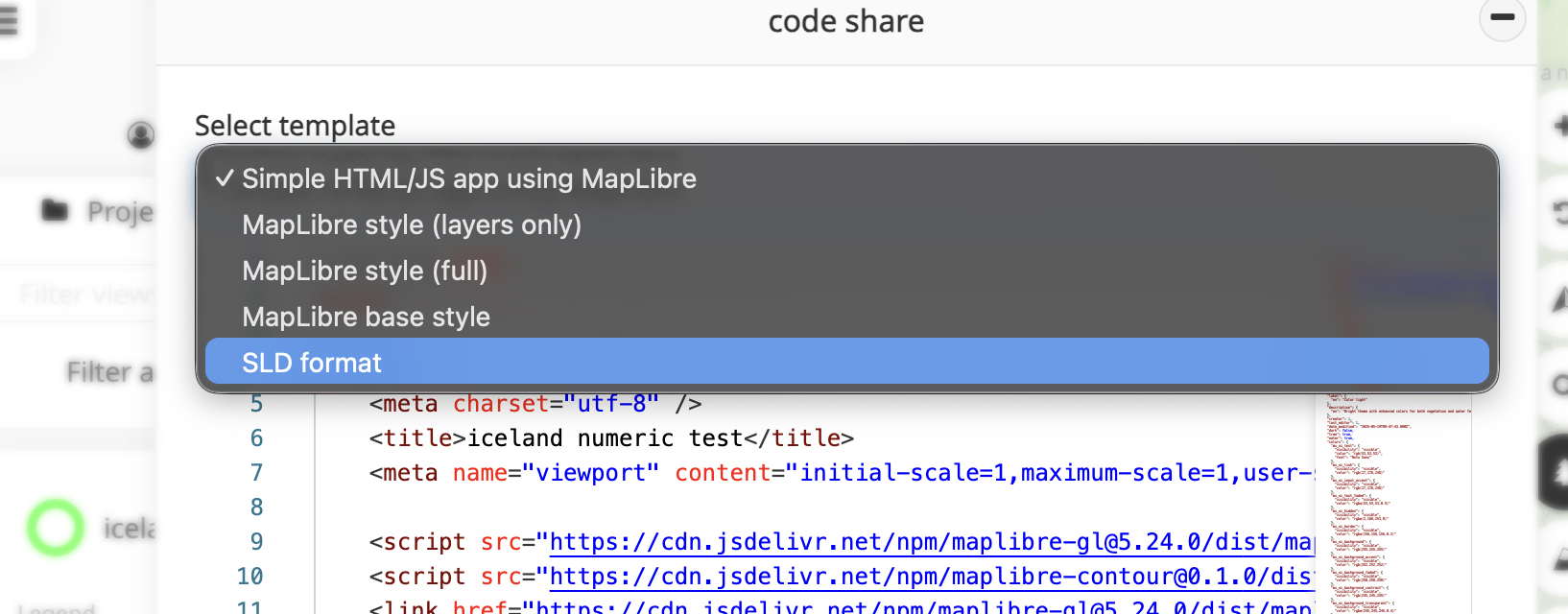

../../_images/code-share-panel.png

Code share layout#

The Code share tool allows users to export the style in several formats which are described in the following sections:

  1. Simple html/js app, using maplibre: this option allows to copy the code of a basic but complete web page which displays the view. Maplibre and the MapX API are used to display the map in an interactive way.

    ../../_images/code-share-jsfiddle.png

    JSFiddle integration example#

  2. Mapbox style (layers only): this option allows to copy the code of all Mapbox layers composing the view knowing that each rule defined in the style of the view corresponds to a layer (link to the Mapbox documentation ).

  3. Mapbox style (full): this option allows to copy the code of the complete Mapbox style (source & layers) of the view. This option can be useful for integrating MapX content into another cartographic application based on Mapbox.

  4. SLD format: the last option allows to copy the style of the view as a Styled Layer Descriptor (SLD). This format is supported by multiple open source softwares: QGIS , GeoServer , MapServer .

    ../../_images/code-share-qgis.gif

    Style integration in QGIS#
